Advanced Cooling System
Forced-air cooling circulate system ensure temperature recover rapidly and reliability
Air-cooled chiller finned evaporator with unique circulation system design to ensure frost-free
Precise Microcomputer Temperature Control
Microprocessor-based temperature controller, digital temperature display, temperature resolution is 0.1℃
Excellent refrigeration layout, 2℃~8℃ inside adjustable
Optional monitoring module and exclusive software to realize remote monitoring
Structure Design
Alarms: High and low temperature alarms, Sensor failure alarm, Power failure alarm,Door open alarm
Two alarm styles: buzzing, flashing
Glass door with heating (alternative solid door)
Two sensor design, can work separately if one damage
Optional thermal printer temperature recorder
Optional USB data download functions
Humanized Design
Safety lock design prevents any abnormal door status
Big screen display, easy to read
Test hole optional
LED light inside, with switch to contro

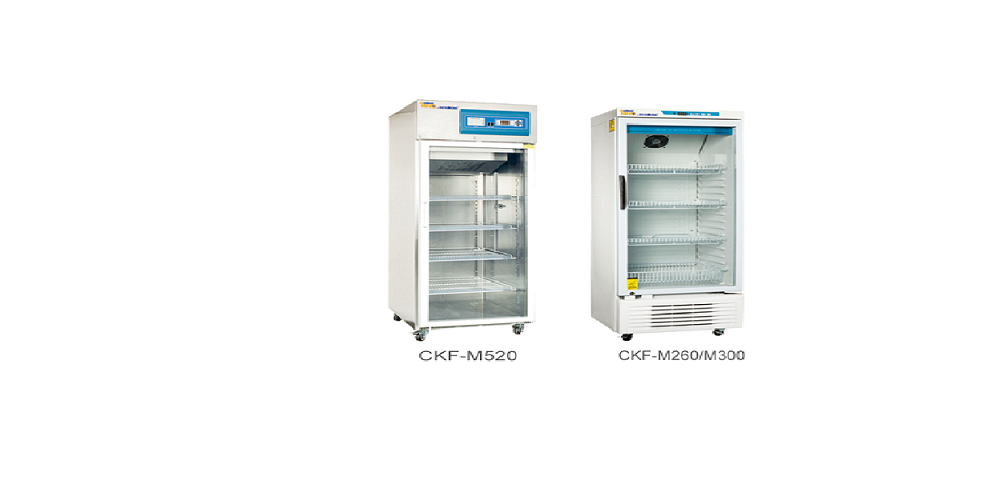

Model | Capacity(L) | Input Power | External Size (W*D*H)mm | Interior Size (W*D*H)mm | Weight (N.t) |
CKF-M045 | 45 | 60W | 430*450*585 | 355*320*415 | 15KG |
CKF-M055 | 55 | 70W | 470*450*707 | 367*300*525 | 21KG |
CKF-M075 | 75 | 70W | 470*450*925 | 367*300*725 | 25KG |
CKF-M105 | 105 | 80W | 505*525*925 | 385*356*737 | 28KG |
CKF-M260 | 260 | 215W | 590*603*1556 | 445*525*1070 | 80KG |
CKF-M300 | 300 | 215W | 590*603*1728 | 445*530*1265 | 90KG |
CKF-M330 | 330 | 220W | 570*642*1940 | 475*540*1335 | 100KG |
CKF-M520 | 520 | 280W | 710*730*2000 | 590*670*1450 | 150KG |
CKF-M968 | 968 | 650W | 470*450*925 | 367*300*725 | 120KG |
CKF-M1500 | 1500 | 830W | 780*1200*1894 | 600*1100*1400 | 150KG |
